- silk screen printing
- peel-off lacquer

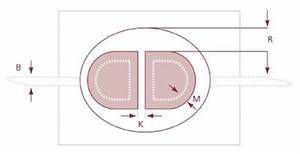

- carbon prints with coating thickness ≥ 15 μm
For the various fields of applications, we generally use halogen-free solder resists.
Our classic standard coating is the green XV501 HF produced from the company ”Coates” which is cast on the PCB. For other coatings and colours we use a silk-screen printing method.
|Tolerances for luminous exposure:||≤ 50 μm|
|Bridges between the SMD-pads depending on the final surface:||≥ 80 μm|
|Plugging of PCBs with filling print without elevations:||up to 0.60 mm|
|Colour pallet:||green (standard)
white, yellow, red, blue,
black (matt and glossy)
